1 Introduction

Nitric acid esters have long been recognized as one class of useful and promising functional group in the design and synthesis of energetic plasticizer, such as 1, 2, 3-propanetriol trinitrate(nitroglycerin), nitrocellulose, and pentaerythritol tetranitrate(PETN), which are used in propellants, explosives, and pyrotechnics^[1-6].An energetic plasticizer 6b-nitrohexahydro-2H-1, 3, 5-trioxacyclopenta[cd]-pentalene-2, 4, 6-triyl trinitrate(2)^[7], which could be compared to PETN on sensitivity, thermal stability and performance, was synthesized by condensation and nitration reactions.The pellets were used to prepare unconfined charges for measuring the detonation velocity, which was found to highly be (7.8±0.3) km·s^-1[7].In this work, we developed a preferable nitration method with the mixture of nitric and sulfuric acid as the nitration reagent, to improve the yield of nitration reaction and obtain a higher yield of 68.16%.And the crystal structure of title compound was reported for the first time, and its structure was composed by three nearly coplanar tetrahydrofuran rings, three nitric acid esters, and a nitro group.

2 Experimental 2.1 Reagents and measurements

All chemical reagents from commercial sources were of analytically pure grade except for the industrial conc.sulfuric acid(95%-98%) and nitric acid(98%).Melting point was measured on a X-6 Melting-Point Apparatus with Microscope.Elemental analysis was performed by a Vario EL Ⅲ elementary analysis instrument.IR spectra were recorded on a Nexus 870 FT-IR instrument using KBr pellet in the 4000-400 cm^-1.NMR spectrum was obtained on a Bruker AV 500-MHz spectrometer with tetramethylsilane(TMS) as the internal standard and acetone-d₆ as the solvent.

2.2 Synthesis of the title compound 2.2.1 Synthesis of 6b-Nitrohexahydro-2H-1, 3, 5-trioxacyclopenta[cd]-pen-talene-2, 4, 6-triol(1)

Nitromethane(2.5 mL, 47 mmol) was added to aqueous glyoxal(40%, 8 mL, 70 mmol), and then aqueous solution of sodium hydroxide(10%, 2 mL) was added dropwise at 15-20 ℃.The mixture was kept at room temperature for 2 h and the precipitated product was filtered off, washed with water.After crystallization from water and drying, the 6b-nitrohexahydro-2H-1, 3, 5-trioxacyclopenta[cd]-pen-talene-2, 4, 6-triol(1) was obtained with yield of 60%.m.p.: 152-153 ℃, ¹H NMR (DMSO-d₆, 500 MHz), δ: 4.94(s, 3H, H2a, H4a, H6a), 5.37(d, J=3.5Hz, 3H, H2, H4, H6), 6.96(d, J=3.75, 3H, OH); ¹³C NMR (DMSO-d₆, 125 MHz) 91.16(C2a, C4a, C6a), 102.45(C2, C4, C6), 106.85(C6b); IR(KBr, ν/cm^-1): 3318(—OH), 2978(—CH), 1556, 1356(—NO₂); Anal.Calcd for C₇H₉NO₈: C 35.75, H 3.86, N 5.96; Found: C 34.90, H 3.73, N 5.50.

2.2.2 Synthesis 6b-nitrohexahydro-2H-1, 3, 5-trioxacyclopenta[cd]-pentalene-2, 4, 6-triyl trinitrate(2)

Nitric acid(2 mL, 45 mmol) was added to conc.sulfuric acid(4.8 mL, 90 mmol), and then compound1(2.34 g, 10 mmol) was added slowly at 0-5℃, with vigorously stirring.The mixture was kept at this temperature for 45 min and poured over crushed ice.A solid precipitate was filtered off and washed with water until to neutral.After the crystallization from methanol, pure compound 2 was obtained with the yield of 68.16%, m.p.119-120 ℃.¹H NMR (acetone-d₆, 500 MHz), δ: 5.64(s, 3H, H2a, H4a, H6a), 6.61(s, 3H, H2, H4, H6); ¹³C NMR (acetone-d₆, 125 MHz), δ: 91.08(C2a, C4a, C6a), 104.90(C6b), 106.9(C2, C4, C6), ¹⁴N NMR (acetone-d₆, 36.13 MHz), δ: 284.11 (ν_1/2=1450 Hz), 325.15(ν_1/2=750 Hz), ¹⁵N NMR(acetone-d₆, 50.67 MHz), δ: 327.76, 368.4; IR(KBr, ν/cm^-1): 2978(—CH), 1571, 1306(—NO₂); Anal.Calcd for C₇H₆N₄O₁₄: C 22.71, H 1.63, N 15.14; Found: C 23.00, H 1.61, N 14.95.

2.3 X-ray crystal structure determination

The title compound 2 was dispersed into ethanol/n-butyl alcohol (V/V =1/1) with a stirrer, and the impurities were eliminated by filtration.The saturated solution of compound 2 was put in a conical flask for two weeks at room temperature staticly, and evaporated slowly to obtain single crystal of compound 2.

A colorless single crystal of compound 2 with dimensions of 0.37 mm×0.31 mm×0.25 mm was selected for X-ray single diffraction analysis, and the data collection was performed on a Bruker SMART Apex ‖ CCD X-ray diffractometer equipped with a graphite-monochromatized Mo K_α radiation (λ=0.71073 Å) using the φ-ω scan mode (2.12° < θ < 25.10°) at 296(2) K.A total of 6234 reflections were collected, of which 2326 were independent (R_int=0.0426) and 1986 with I >2σ(I) were considered to observed and used for the refinement.

The structure was solved by direct methods and refined by full-matrix least squares techniques on F²using SHELXS-97 and SHELXL-97 programs ^[8-10]. All non-hydrogen atoms were refined anisotropically.The atomic scattering factors and anomalous dispersion corrections were taken from X-ray crystallography ^[8].The final refinement gave R=0.488, wR=0.1289(w=1/[σ²(F_o²) +(0.0708P)²+0.4691P, where P=(F_o²+2F_c²)/3), S=1.097, (Ä/ó)_max=0.001, (Än)_max=0.478 and (Än)_min=-0.266 e/ų. Crystal data and structural refinement parameters for compound 2 were listed in Table 1.

3 Results and discussion 3.1 Synthesis of title compound

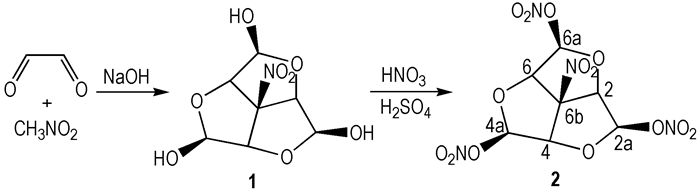

Using nitromethane and glyoxal as the starting materials, compound 2 was synthesized by the process of condensation and nitration reactions, and the total yield could reach 40.90%.Stanistaw^[7] synthesized compound 2 using nitric acid as the nitration reagent with 55% yield.In order to increase the yield of nitration reaction, the different nitration agents were used and the results were given in Table 2. The product wasn′t found with a mixture of potassium nitrate in conc.sulfuric acid as the nitration reagent.The mixture of nitric acid and conc.sulfuric acid were strong nitration agent and gave the target product in a yield of 68.16%.The elemental analysis, IR, ¹H NMR, ¹³C NMR, ¹⁴N NMR and ¹⁵N NMR for the product are in good agreement with the title compound.

3.2 Crystal structure

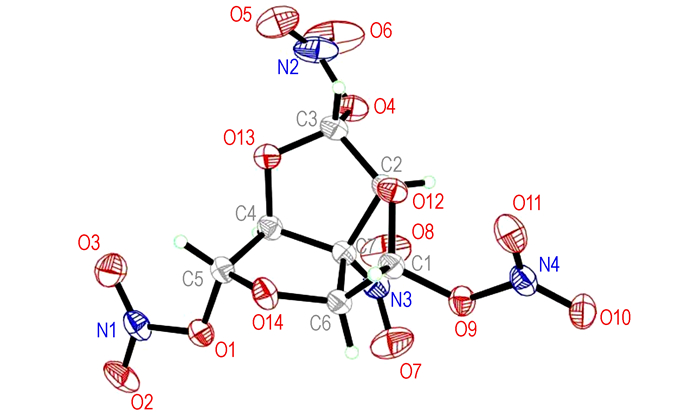

The molecular structure and packing diagram of compound 2 are depicted in Fig. 1 and Fig. 2.The the bond lengths and angles of the compound is presented in Table 3 and Table 4, which shows in the molecule are within normal ranges^[11].The structure of compound 2 is rotational symmetry, which looks like a red-wine glass with a nitro on the bottom and three nitric acid esters in flank.There are three tetrahydrofuran rings in the molecular.Moreover, the four carbon atoms of the tetrahydrofuran ring are nearly in a plane (the dihedral angles of C(1)—C(6)—C(7)—C(2) is-10.2°).The dihedral angles between plane defined by C(1)—O(12)—C(2) and plane C(2)—C(7)—C(6), between plane by C(1)—C(6)—C(7) and plane C(2)—C(7)—C(6) are 36.16° and 26.16°, respectively.

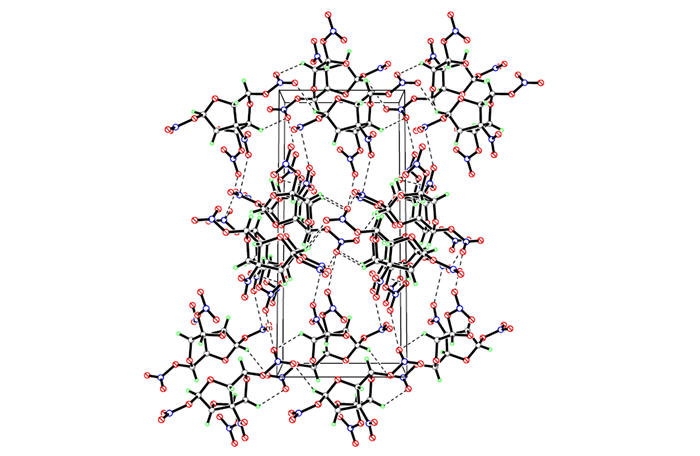

The final three dimensional networks (Fig. 2) are formed by classical intramolecular hydrogen bonds C(6)—H(6)…O(7), intermolecular hydrogen bonds C(2)—H(2)…O(11) (-x+1, -y+2, -z+2) and C(5)—H(5)…O(10) (-x+1, -y+2, -z+2), and the detailed information could be seen in Table 5.Moreover, it is also found that several weak intermolecular contacts are between O and N, O and O in the crystal.All of the hydrogen bonds and intermolecular contacts, which not only further stabilize the solid structure, but also lead to a sufficiently dense structure (D_c=1.884 g·cm^-3).

4 Conclusions

The title compound was synthesized by using the mixture of nitric acid and conc.sulfuric acid instead of merely nitric acid.It can be indicated from X-ray single-crystal diffraction analysis that the structure of compound 2 is rotational symmetry with three tetrahydrofuran rings, three nitric acid esters and a nitro.Due to the weak intermolecular contacts, intramolecular and intermolecular hydrogen bonds, the density of compound 2 could reach up to 1.884 g·cm^-3.
